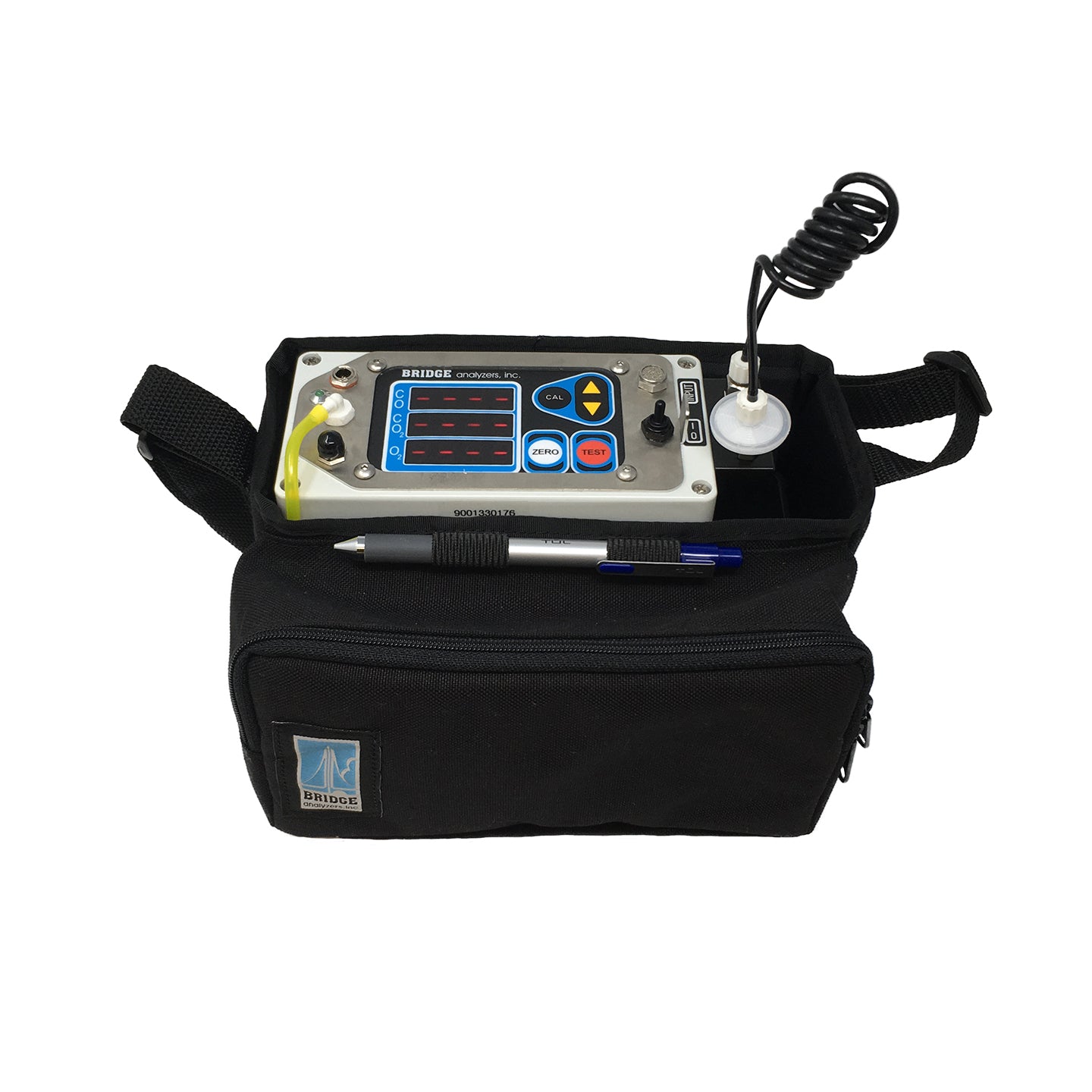

Headspace Case Ready Meat MAP Headspace Tri-Gas Analyzer - CO/CO2/O2
Buy Now
  • CO, CO2 and O2 Measurement Specifically for Case Ready Meat.
    • High Resolution 0.001% O2 & CO for Low-Ox.
    • 100.0% O2 and CO2 Range for High-Ox.
    • MAP Headspace Analyzer With Lo-Ox and Hi-Ox Capability.
  • Sealed for Line Environments — Industrial NEMA-4 Design.
  • Cordless Operation 14 Hours (900133).
    • Fast and Easy to use . Test measurement in 15 Seconds.
    • Stable, Trouble-free Infrared CO2.
    • Unique Lo-Ox and Hi-Ox E-C O2 sensors for unmatched accuracy.
    • Compact (6″x3″x3″), lightweight, and rugged.

Gases MeasuredCarbon Monoxide (CO), Carbon Dioxide (CO2), and Oxygen (O2)
Measurement MethodsCO and CO2: NDIR (Non-Dispersive Infra-Red.) O2: Electro Chemical Sensor
Measuring RangesCO: 0.000% – 1.000%
CO2: 0.00% – 100.0%
O2: 0.00% – 100.0%
ResolutionCO: 0.001%, CO2: 0.01%,
O2: 0.01% above 2.00%, 0.001% Below 2.000%
Accuracy4% relative to gas reading
Repeatability1% relative to gas reading
Response Time99% Final Reading in 15 Second.
Sampling Rate4 ml/sec
Sample TimeFactory default 15 Seconds. Adjustable in 1 second increments.
External Gas Contaminate ProtectionPencil-point cross-drilled sample needle and customer serviceable particle/liquid blocking filter.
Internal Gas Contaminate ProtectionInternal particle/water blocking filter protects pneumatics and optical components from gas-borne contamination.
Warm-UpFull accuracy in 3 minutes.
Operating Temperature0 to +40 degrees C.
PowerLine Power: 110VAC / 220VAC Regulated Wall Supply

Internal Battery: NiMH battery pack, 14 hours per charge.
WeightUnit Alone: 2.5 Lbs.
In Soft Case: 3.5 Lbs.
SizeUnit Alone: 6 ¼ L x 3W x 3 ½H
In Soft Case: 8 ½ L x 5W x 5H
PC InterfaceFully Sealed Serial Port, 9600 baud.
900133 Brochure
